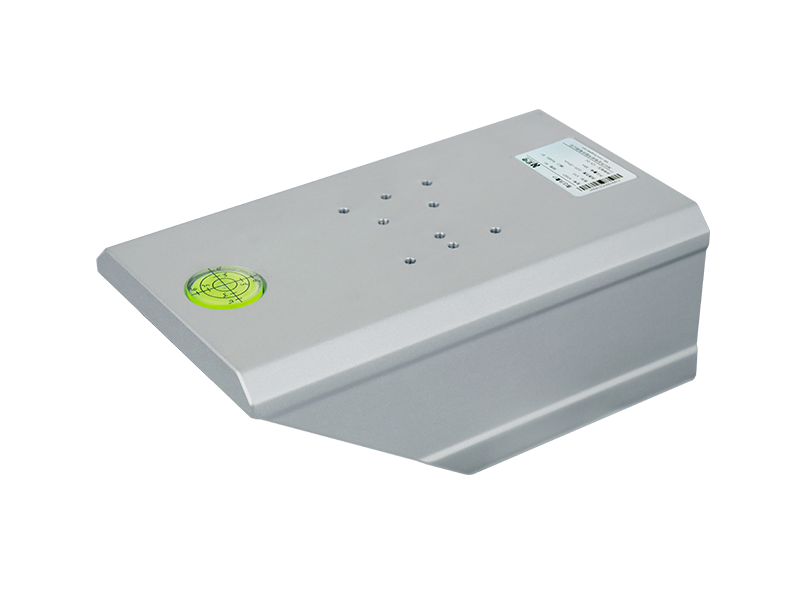

H1922-24 Radar Flow Meter, Low-Power Design, IP68, CE, Remote Management

Overview

The H1922-24 Radar Flow Meter delivers accurate, real-time monitoring of water level, velocity, and flow without contacting the water surface. Featuring advanced radar technology, built-in edge intelligence, and IP68 protection, it provides a reliable solution for remote hydrological and smart water monitoring applications.

Key Features

Flexible Data Acquisition

The device supports comprehensive monitoring of multiple parameters, including water level, air gap, flow velocity, discharge, cumulative positive flow, cumulative negative flow, signal strength, temperature, voltage, and installation angle, making it suitable for a wide range of hydrological applications.

Advanced Radar Sensing & Edge Intelligence

Combining CW+FMCW radar technology, a planar microstrip array antenna, and intelligent edge computing algorithms, the H1922-24 provides accurate water level, velocity, and flow measurements. Automatic angle compensation and advanced flow calculation models help maintain measurement accuracy even in complex channel conditions.

Non-Contact Radar Measurement

The H1922-24 uses advanced planar microwave radar technology to measure water level, velocity, and flow without direct contact with the water surface. This design minimizes the impact of sediment, pollution, corrosion, and harsh environmental conditions, ensuring stable and long-term operation.

Mobile Bluetooth Configuration

The integrated Bluetooth module allows direct local access through a smartphone application. Users can configure parameters, perform firmware upgrades, retrieve data, and monitor device status without requiring a laptop or specialized field equipment.

Rugged IP68 Protection

Designed for demanding outdoor environments, the H1922-24 features an IP68-rated enclosure with waterproof and dustproof protection. Additional overvoltage, surge, and reverse-polarity protection ensure reliable performance in harsh weather and remote installations.

Easy Integration with Existing Systems

Supporting the standard Modbus protocol, the H1922-24 can easily connect with PLCs, RTUs, computers, and data acquisition systems, enabling seamless integration into existing monitoring infrastructures.
