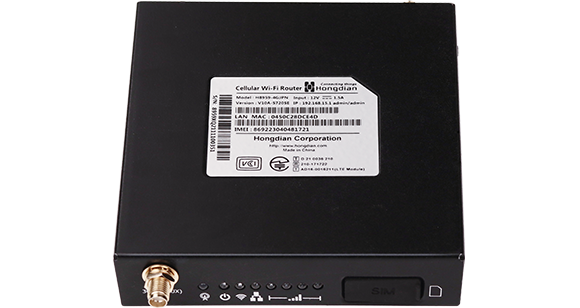

H8959 4G Cellular VPN Router
Vendor:
Hongdian
Availability:
In Stock
- $169.00
- $169.00
- Unit price
- per
Please hurry! Only 20 left in stock
Couldn't load pickup availability
Built And Shipped Within 5 - 7 Bussiness Days
Overview
The Hongdian H8959 is a 4G LTE Cat1/Cat4 VPN router built for secure, reliable connectivity with multi-VPN support, link failover, and cloud management. Ideal for IoT, remote monitoring, financial services, and industrial deployments.
Key Features
Reliable Connectivity
High-quality network services support multiple link backup types. Wired Wan or WiFi can work as the primary link, cellular LTE networks work as the backup link, and vice versa. The backup link provides for network connectivity if the primary link fails.
Data Security, Multiple VPN
H8959 supports mainstream VPN protocols, including PPTP, L2TP, IPSec, OpenVPN, and GRE.Multiple safe encryption methods make data safe transmission up to financial grade.
Fully Industrial Design
EMC level 3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.
Compact and Rugged Housing Design
Benefit from H8959’s compact design, so the narrow installation space will no longer be a roadblock. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.
Cloud Management
Manage, monitor, and update devices remotely via the Hongdian Sandora platform for simplified large-scale deployment.
Applications
Specifications
| Hardware | |
| CPU | MIPS 24Kc @580 MHz |
| RAM | 128MB |
| FLASH | 16MB |
| Cellular Interface | |
| Modem | 1 x LTE CAT4 |
| Number of antennas | 2 |
| Connector | SMA-K |
| SIM | 1 x Mini SIM (2FF) |
| Ethernet Interface | |
| Number of ports | 2 x 10/100 Mbps, Ethernet |
| Configuration | 2 x LAN or 1 x LAN + 1 x WAN |
| PoE output | N/A |
| Wireless interface | |
| Standards | 802.11b/g/n, AP or station mode |
| Frequency bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 1 |
| Connector | RPSMA-K |
| Software | |
| Auto fail-over | Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode) |
| Network protocols | PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc. |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Ipsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, |
| AES-192-CBC, AES-256-CBC, SEED-CBC | |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN |
| Power Supply and Consumption | |
| Power Connector | DC socket |
| Voltage input | +9V~+12V DC |
| Power consumption | Idle: 100mA@12V DC |
| Data transceiving: 350mA@12V DC | |
| Others | |
| Reset button | Yes |
| LED indicators | 8 x indicators for Modem, Power, WLAN, Ether, Signal |
| Hardware watchdog | Yes |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 300g |
| Dimension | 102.8×98.8×23.4(mm) |
| Installations | Desktop, wall mounting |
| Operating temperature | -30 ~ +75℃ |
| Storage temperature | -40 ~ +85 °C |
| Relative humidity | 0~95%(no condensation) |
| EMC | |
| ESD | EN61000-4-2, level3 |
| RS | EN 61000-4-3, level3 |
| EFT | EN 61000-4-4, level3 |
| CS | EN 61000-4-6, level3 |
| Certifications(*In progress) | CE, FCC, Verzion,Sprint,PTCRB,IC,JATE+MIC,VCCI,RCM |
