H8950 4G Cellular Dual SIM Router
- $139.00
- $139.00
- Unit price
- per
Please hurry! Only 20 left in stock
Couldn't load pickup availability
Built And Shipped Within 5 - 7 Bussiness Days
Overview

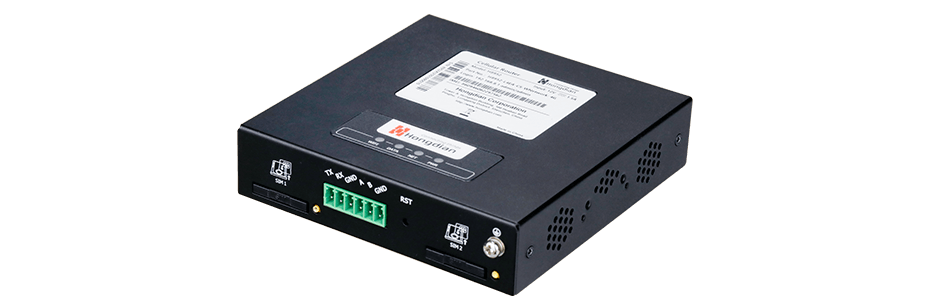

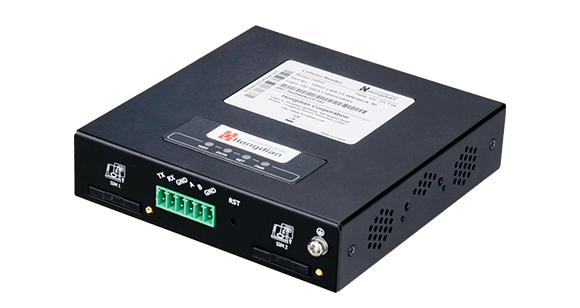

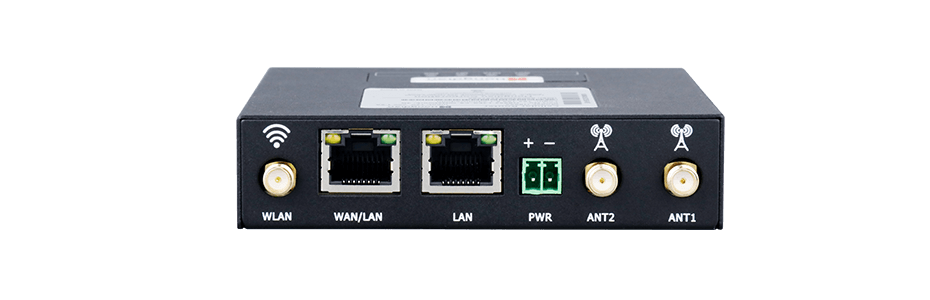

The H8950 is Hongdian’s advanced industrial IoT router, built to deliver upgraded cellular performance while maintaining cost effectiveness. Featuring dual Mini-SIMs, robust VPN and SD-WAN capabilities, and flexible link-failover among 4G/RedCap, Ethernet, and WiFi, it ensures your devices stay connected in critical applications. With RS-232/RS-485 compatibility and multiple LAN/WAN configurations, it's ideal for smart lockers, EV charging stations, unattended kiosks, and industrial monitoring systems.
Key Features
Always-Online Connectivity
High-quality network services support multiple link backup types. Wired Wan or WiFi can work as the primary link, cellular LTE networks work as the backup link, and vice versa. The backup link provides for network connectivity if the primary link fails. Furthermore, it can automatically failover to a second SIM card with the dual SIM feature.
Strong Security Protection
The H8950 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.
Serial Modem
H8950 integrates with routing and serial modem, which can easily achieve the bi-directional data transparent transmission between RS485 devices and 4G network, supports connecting to various cloud platforms. It also supports user-defined register & heartbeat packets to ensure the device online.
Industrial Design, Fit into Any Harsh Environment
ESD, Surge, EFT protection, wide input voltage.
Built-in hardware watchdog, 7*24 hours stable operation in harsh environment or industrial site with strong electromagnetic interference.
Compact and Rugged Housing Design
Compact size, supports both panel and DIN-rail mounting, suitable for various industrial IoT applications.
Cloud Remote Management
Managed via Hongdian Sandora Platform: firmware updates, remote configuration, logging & monitoring.
Applications
Specifications
| Hardware | |
| CPU | MIPS 24Kc 580MHz |
| RAM | 128MB |
| FLASH | 16MB |
| Cellular Interface | |
| Modem | 1 × LTE Cat4 |
| SIM | 2 × Mini SIM (2FF) |
| Number of Antennas | 2 |
| Connector | SMA-K |
| Ethernet Interface | |
| Number of Ports | 2 × 10/100 Mbps, Ethernet |
| Configuration | 2 × LAN or 1 × LAN + 1 × WAN |
| Wireless Interface | |
| Standards | 802.11b/g/n, AP or station mode |
| Frequency Bands | 2.4 GHz |
| Speed | 150Mbps |
| Security | WEP, WPA, WPA2 |
| Encryption | 64/128 AES, TKIP |
| Antennas | 1 |
| Connector | RP SMA-K |
| Serial Interface | |
| Type | 1 × RS-232 or 1 × RS-485 serial port |
| Socket Form | 1 × 6-pin 3.5 mm female socket |
| Signal Definition | RX, TX, GND (RS-232) , A+, B-, GND (RS-485) |
| Baudrate | RS-232 (300-115200bps), RS-485 (300-115200bps) |
| Software | |
| Auto Fail-over | Between: Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode) |
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, etc. |
| Network | APN, VPDN, VLAN, QoS |
| Routing | Static Routing, Policy routing, RIP, OSPF and BGP, etc |
| Firewall | NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List |
| Attack Prevention | DDOS prevention, Anti port scanning |
| Ipsec Encryption | DES, 3DES, AES128, AES192, AES256 |
| OpenVPN Encryption | BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, |
| AES-192-CBC, AES-256-CBC, SEED-CBC | |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Remote Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Cloud Platform |
| Serial Ports Function | Transparent, Modbus RTU, etc |
| Power Supply and Consumption | |
| Connector | 2 pin socket |
| Voltage Input | +5V~+36V DC |
| Power Consumption | Idle: 100mA@12V DC, Data transceiving: 350mA@12V DC |
| Others | |
| Reset Button | Yes |
| Hardware Watchdog | Yes |
| LED Indicators | 4 indicators for Wi-Fi, DATA, NET, PWR |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Housing & Weight | Metal, about 300g |
| Dimension | 99.7×98.8×23.4(mm) |
| Installations | Desktop, wall mounting, din rail mounting |
| Operating Temperature | -30 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Relative Humidity | ≤ 95%(no condensing) |
