A500Q 5G Wi-Fi 6 CPE Router for Home/Office/SMB, 1×2.5GbE WAN/LAN, 1×GigE LAN, Nano SIM (4FF)
- $279.00 USD
- $279.00 USD
- Unit price
- per
Couldn't load pickup availability
Built And Shipped Within 5 - 10 Bussiness Days.
Most orders are delivered within 5-7 business days.
Overview

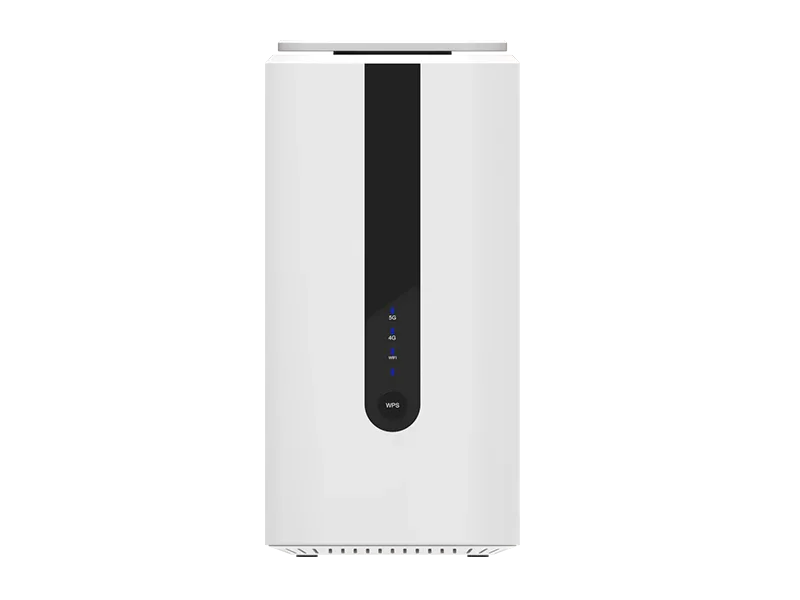

The A500Q 5G Wi-Fi 6 CPE is a high-performance desktop 5G CPE designed for smart homes and small to medium enterprises. With its sleek, integrated design and powerful AX5400 WiFi-6 support, it delivers plug-and-play ultra-fast network access. Equipped with built-in 10 antennas and the latest Qualcomm X62 module, A500Q ensures high bandwidth connectivity, seamless multiple device support, and minimal signal interference.
Key Features
Advanced 5G Platform with Cutting-Edge Efficiency
Powered by the Qualcomm X62 chipset and compliant with 3GPP Release 16 standards, our device supports both 5G NSA and SA modes across Sub‑6 GHz bands. Built on an advanced 4nm process, A500Q delivers high performance with bandwidth up to 160MHz for reliable, high‑speed connectivity.
High‑Performance Wi‑Fi 6 with Exceptional Capacity
Featuring Wi‑Fi 6 AX5400 specifications, our solution offers speeds up to 200% faster than previous generations. With 4×4 MIMO omnidirectional high‑gain antennas, A500Q supports up to 128 concurrent users. Advanced Wi‑Fi 6 technologies including OFDMA, TWT, and BSS coloring ensure efficient, high‑speed access in dense environments.
Optimized Signal Design for Stable Connections
Equipped with a total of 10 built‑in antennas—4 dedicated to 5G and 6 for Wi‑Fi 6—the device enables strong MIMO‑based concurrent speeds. Its 3D stereo stacking antenna design minimizes interference and optimizes signal reception for consistent coverage.
Flexible and Reliable Connectivity
The A500Q supports plug‑and‑play operation with nano‑SIM activation, enabling quick deployment without complex setup. It is suited for diverse scenarios including mobile setups, retail environments, remote sites, and residential use—no fiber or trenching required.
Enhanced Security and Management Capabilities
Built‑in port filtering, security firewall, and VPN support safeguard your network. While not including a specific cloud manager platform, the device enables secure remote oversight and is designed for reliable operation in professional environments.
Applications
Specifications
| Hardware | |
| LED indicator | Power, Wi-Fi, 4G, 5G |
| SIM card | 4FF SIM (Nano SIM) |
| VOLTE | RJ11*1 |
| KEY | RESET, Power, WPS |
| Built-in antenna | 4G/5G antenna*4, Wi-Fi antenna(MU MIMO)*6 |
| Ethernet | 1*10/100/1000Mbps LAN, 1*10/100/1000/2500Mbps LAN/WAN |
| Operating voltage | +12VDC/3A |
| Weight | About 800g |
| Size | 100mm* 100mm* 205mm |
| Operating temperature | -10ºC+45ºC |
| Relative humidity | ≤95% |
| Storage temperature | -30ºC+75ºC |
| Network | |
| Cellular * | 5G NSA Sub-6: 3.2Gbps (DL)/600 Mbps (UL) |
| 5G SA Sub-6: 2.4Gbps (DL)/900 Mbps (UL) | |
| LTE: 1.6 Gbps (DL)/200 Mbps (UL) | |
| WCDMA: 42 Mbps (DL)/5.76 Mbps (UL) | |
| Wi-Fi 6* | 2.4GHz: 802.11 a/b/g/n/ac/ax, 2*2 MIMO, 576Mbps |
| 5.8GHz: 802.11 a/b/g/n/ac/ax, 4*4 MIMO, 4804Mbps | |
| Max user: 128 | |
| *Theoretical peak value, the actual rate is related to the test environment | |
Product Detail
Ordering Info
| Part No. | Region | Network Type | Ethernet Ports | Ethernet Speed | Serial Ports | IO Ports | WIFI | Extra Interface |
| A500Q-NREA-V | EMEA/ APAC | 5G | 2 Eth ports | 1 × 2.5GigE + 1 × GigE | No Serial | No IO | YES | / |
| A500Q-NRNA-V | N.America | 5G | 2 Eth ports | 1 × 2.5GigE + 1 × GigE | No Serial | No IO | YES | / |
Product Compare
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|
| Model | H8940 | H8949 | H8950 | H8921 | H7961 | H8871 | H6131 |
| Modem | 1 × LTE Cat1 | 1 × LTE Cat4 | 1 × LTE Cat4 | 1 or 2 × LTE Cat4 | 1 × LTE Cat4 | 1 × 5G NR or 2 × LTE or 2 × 5G NR |
1 × LTE Cat4 |
| SIM | 1 × Mini SIM (2FF) | 1 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) (eSIM Optional) |
2 × Mini SIM (2FF) |
| Ethernet Port | 2 × 10/100 Mbps LAN or 1 ×10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
2 × 10/100 Mbps LAN or 1 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
2 × 10/100 Mbps LAN or 1 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
5 × 10/100 Mbps LAN or 4 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
4 × 10/100 Mbps LAN or 3 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
4×10/100/1000 Mbps LAN+1×2.5G WAN/LAN |
1 × 10/100Mbps LAN + 1 × 10/100Mbps WAN/LAN |
| Cellular Antennas | 2 | 2 | 2 | 2 | 2 | 4 | 2 |
| Serial Port | / | / | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 |
| Wi-Fi | 2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz & 5 GHz (802.11b/g/n/ac/ax) |
2.4 GHz (802.11b/g/n) |
| Wi-Fi Antennas | 1 | 1 | 1 | 1 | 1 | 3 | 1 |
| GNSS | / | / | / | ✔ | ✔ | ✔ | / |
| POE | / | / | / | / | PSE | PD+PSE | / |
