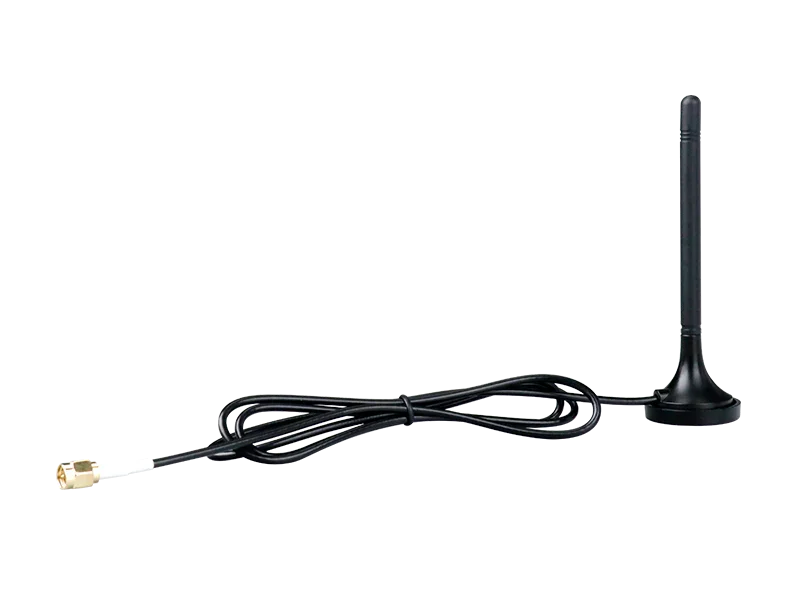

4G Magnetic Mount Antenna
Vendor:
Hongdian
Availability:
In Stock
- $5.00 USD
- $5.00 USD
- Unit price
- per
Couldn't load pickup availability
Built And Shipped Within 5 - 10 Bussiness Days.
Most orders are delivered within 5-7 business days.
-
Frequency Range: 690–960 MHz / 1710–2690 MHz
-
Gain: 4 dBi
-
Antenna Type: Magnetic mount (suction/magnetic base)
-
Cable Type: RG174LL low-loss coaxial cable, double-shielded
-
Cable Material: Tinned copper conductor
-
Cable Length: 100 cm
-
Housing Material: ABS
-
Dimensions: Ø 3.26 × 11.2 cm
Product Compare
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|
| Model | H8940 | H8949 | H8950 | H8921 | H7961 | H8871 | H6131 |
| Modem | 1 × LTE Cat1 | 1 × LTE Cat4 | 1 × LTE Cat4 | 1 or 2 × LTE Cat4 | 1 × LTE Cat4 | 1 × 5G NR or 2 × LTE or 2 × 5G NR |
1 × LTE Cat4 |
| SIM | 1 × Mini SIM (2FF) | 1 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) | 2 × Mini SIM (2FF) (eSIM Optional) |
2 × Mini SIM (2FF) |
| Ethernet Port | 2 × 10/100 Mbps LAN or 1 ×10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
2 × 10/100 Mbps LAN or 1 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
2 × 10/100 Mbps LAN or 1 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
5 × 10/100 Mbps LAN or 4 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
4 × 10/100 Mbps LAN or 3 × 10/100 Mbps LAN + 1 × 10/100 Mbps WAN |
4×10/100/1000 Mbps LAN+1×2.5G WAN/LAN |
1 × 10/100Mbps LAN + 1 × 10/100Mbps WAN/LAN |
| Cellular Antennas | 2 | 2 | 2 | 2 | 2 | 4 | 2 |
| Serial Port | / | / | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 | 1 × RS-232 + 1 × RS-485 |
| Wi-Fi | 2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz (802.11b/g/n) |
2.4 GHz & 5 GHz (802.11b/g/n/ac/ax) |
2.4 GHz (802.11b/g/n) |
| Wi-Fi Antennas | 1 | 1 | 1 | 1 | 1 | 3 | 1 |
| GNSS | / | / | / | ✔ | ✔ | ✔ | / |
| POE | / | / | / | / | PSE | PD+PSE | / |
